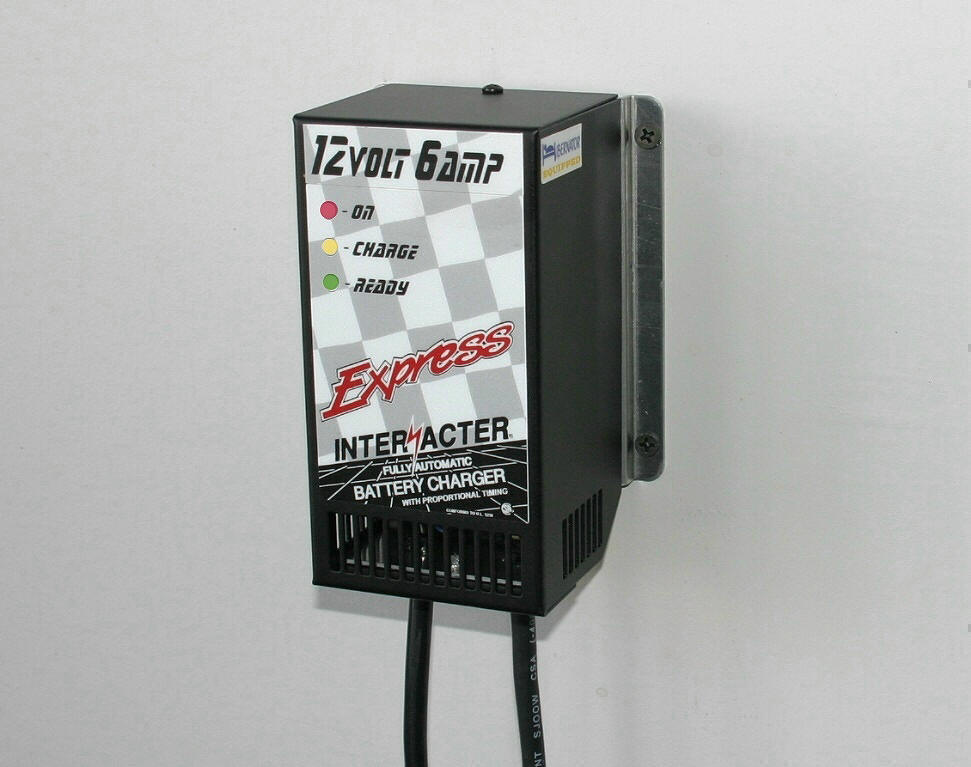

Text Box:        Series Battery Chargers by Interacter   EX Series chargers are for wall/bulkhead mounting or table top use in standby applications for maximum battery performance.   Recommended applications Classic Car Storage, Marine Storage, RV, Wheel Chair/Scooter, Portable Equipment, Emergency Generators,  Vehicle Mounted Equipment, and OEM Applications.

Text Box: Unique HibernatorR feature—Automatically cycles the battery every 30 days. Advanced 3-stage charge profile CI-CV-Float DIGITAL MICROPROCESSOR CONTROLLED Proportional Timing for accurate, fully automatic charging- “Patented” Self test on connection to AC power– Green-Yellow-Red LED sequence - Service savings Electronic Reverse Battery polarity protection - User safety Soft start current control for gradual ramp up, no arcing on battery connect Constant Current Bulk Charge– Fastest possible return of energy to the battery Red Power On LED Yellow light flashing indicates the battery has reached 80% recharge level Accurate Green “Battery Ready” indicator LED Constant Voltage Float/Standby finishing & maintenance charge Independent Overrun (fault) Timer— shuts down after 18 hours and flashes Green LED Electronic short circuit shutdown Black Out and Brown Out protection with automatic restart Optional Temperature Compensation for precise charge in extreme temperatures Optional remote LED Battery status indication module

Text Box: AGM lead acid batteries                  Flooded batteries                 Sealed lead acid batteries

Text Box: Available in     6v 6amp        12v 6amp            24v 3amp                36v 2amp                      models

Text Box: Interacter, Inc.    290 Pratt St.    Meriden, CT  06450     Phone (203) 630-0199   Fax (203) 630-0122   www.interacter.com



Model

DC
Output
Amps

DC
Output
Volts

AC
Input
Amps

AC
Input
Volts

AC

Input
Frequency

Length
In. (mm)

Width

In. (mm)

Height

In. (mm)

Weight
Lbs. (kg)

EX0606

6

6

1

117

60 Hz

6  (152.4)

3  (76.2)

3  (76.2)

4.5  (2.04)

EX1206

6

12

2

117

60 Hz

6  (152.4)

3  (76.2)

3  (76.2)

4.5  (2.04)

EX2403

3

24

2

117

60 Hz

6  (152.4)

3  (76.2)

3  (76.2)

4.5  (2.04)

EX3602

2

36

2

117

60 Hz

6  (152.4)

3  (76.2)

3  (76.2)

4.5  (2.04)
